Description

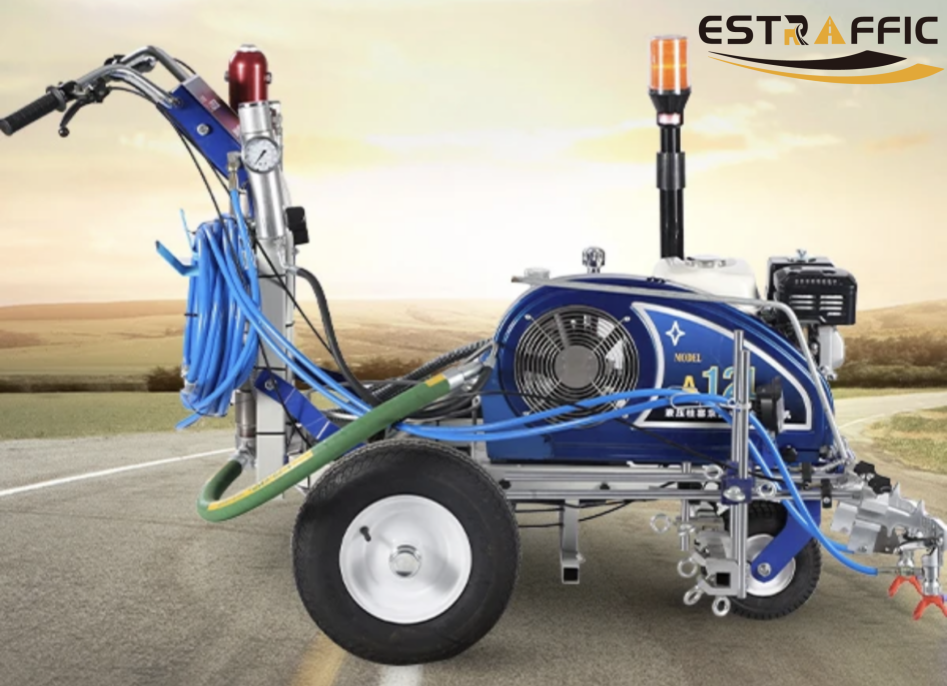

ES-12A Hydraulic airless cold Paint road marking machine adopts imported Dakin hydraulic oil plunger. The machine spraying width ranges from 50-600mm. The solvent-based cold paint, waterborne cold paint and other one-component acrylic paint are all applicable to our cold paint machine using. Our cold paint machine can achieve different types of lines: single lines, double lines, zebra crossing lines, parking lots striping, airport runways, parking lot lines etc.
ES-12A Airless spray cold paint road marking machine can be used for road, street, highway, parking lot, factory, driving schools, playgrounds, highways and airport road markings. It equips with imported Dakin plunger pump. It has stable performance and high working efficiency. The maximum flow rate is up to 12L/min.
Technical Parameter
Model | ES12A |
Dimension | 1580*850*1050mm |
Weight | 115kgs |
Marking Width | 50-600mm(Adjustable) |
Marking Thickness | 0.2-0.4mm(Adjustable) |
Material Consumption | 0.25kg/m² |
Spraying Flow | 12L/min |
Marking Speed | 2-3KM/Hour |

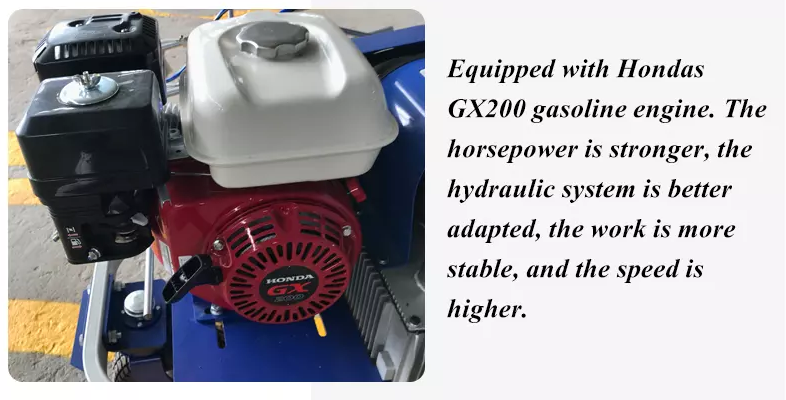

Gasoline Engine | Honda GX200, 6.5HP |
Paint Pump | Dakin Plunger Pump |
Injection Pump and Control Method | Automatic Reciprocating Plunger |
Line Marking Method | High Pressure Airless Spray |
Working Pressure | 10-20Mpa(1000-2000 Bar) |
Stabilized Pressure Pipe Length | 15m |

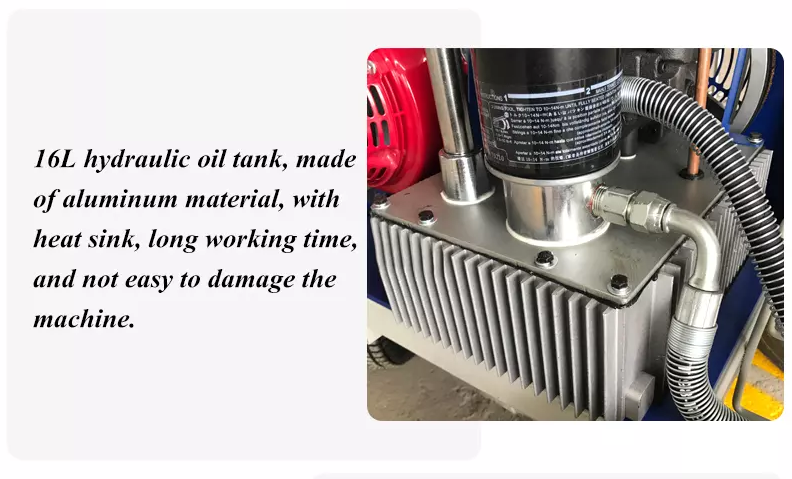

Hydraulic Oil Tank | 16L Aluminum radiator hydraulic oil tank |
Spray Gun | Imported Stainless Steel Double Spray Guns |
Guide Indicator | Laser Ten Ruler |

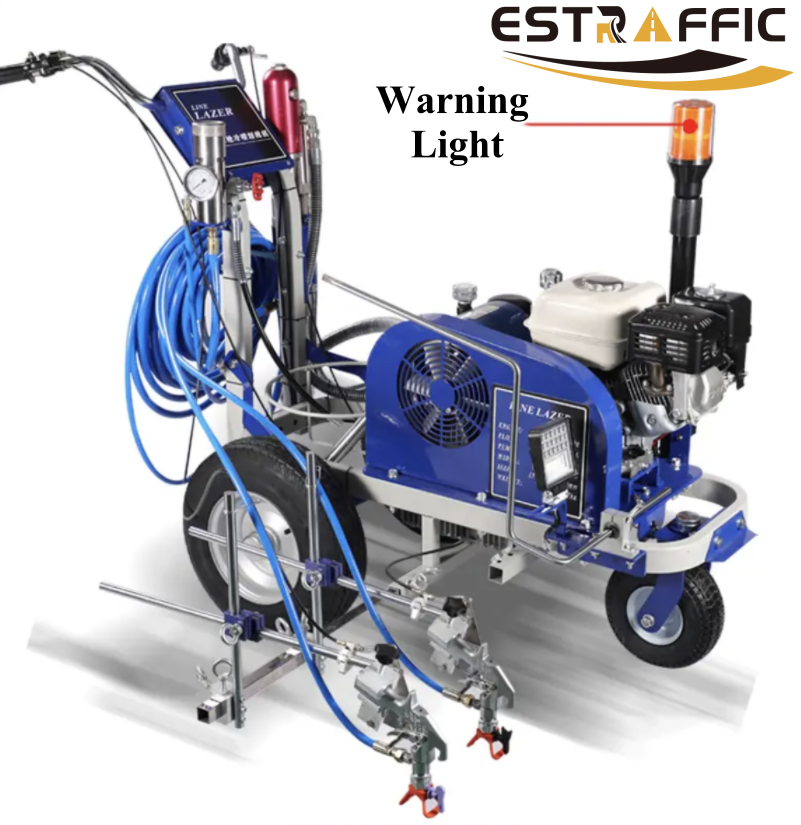

LED Flashing Light | 60W |
Optional Configurations | Glass Beads Dispenser |

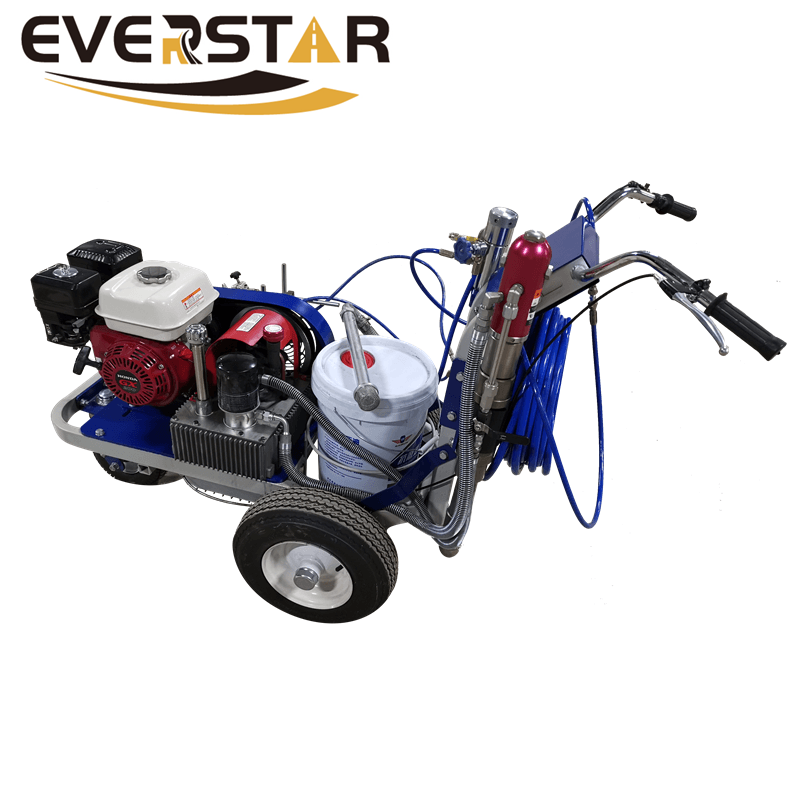

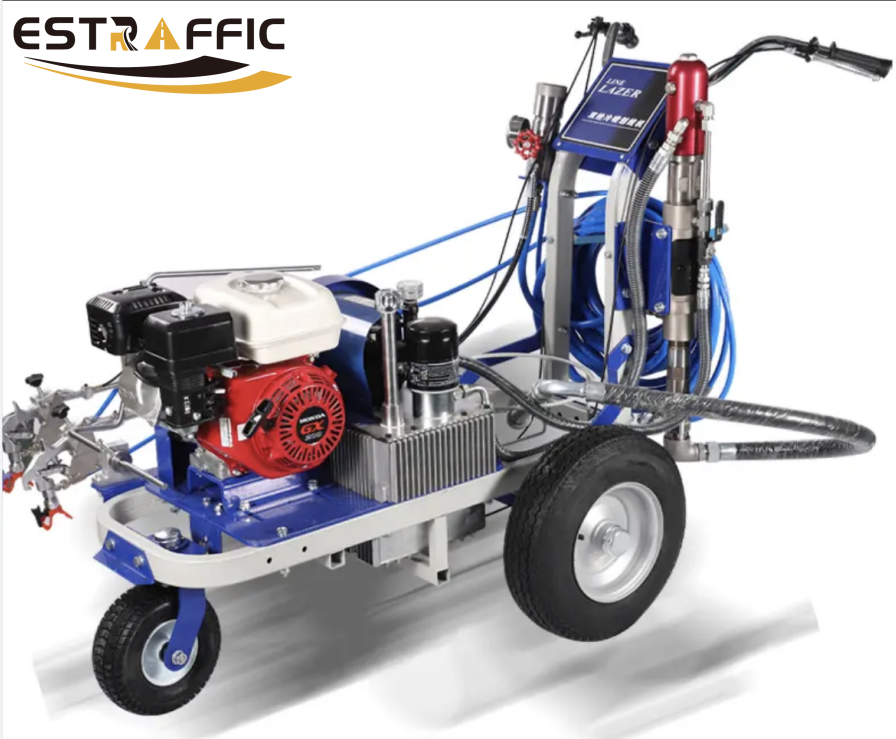

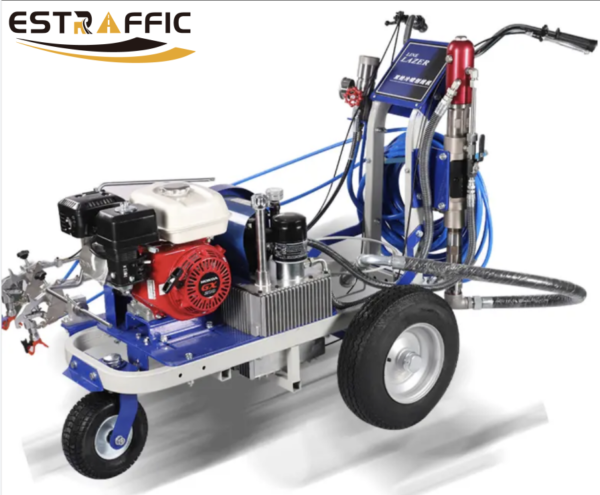

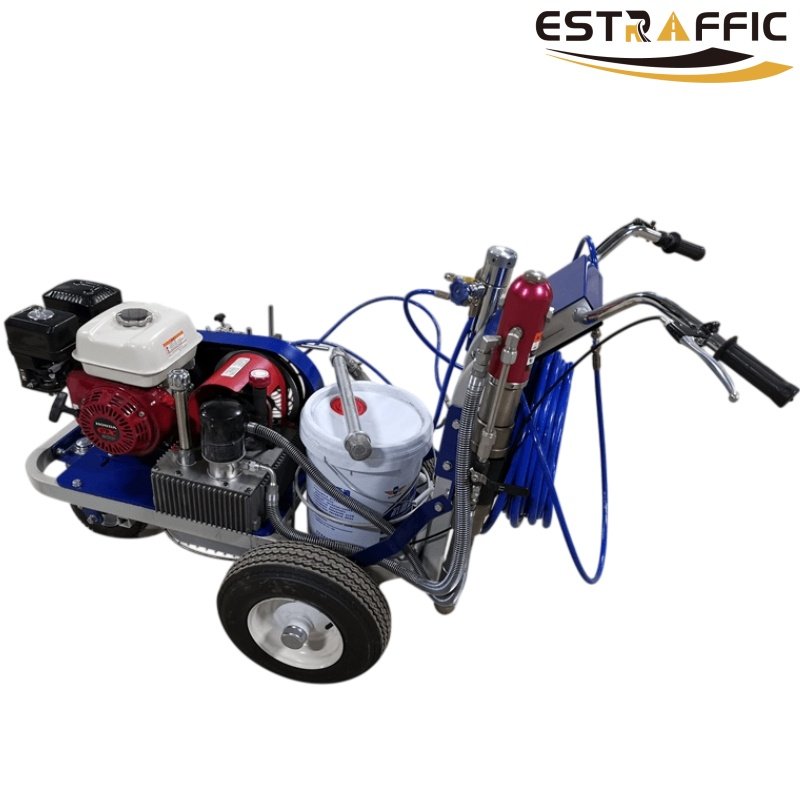

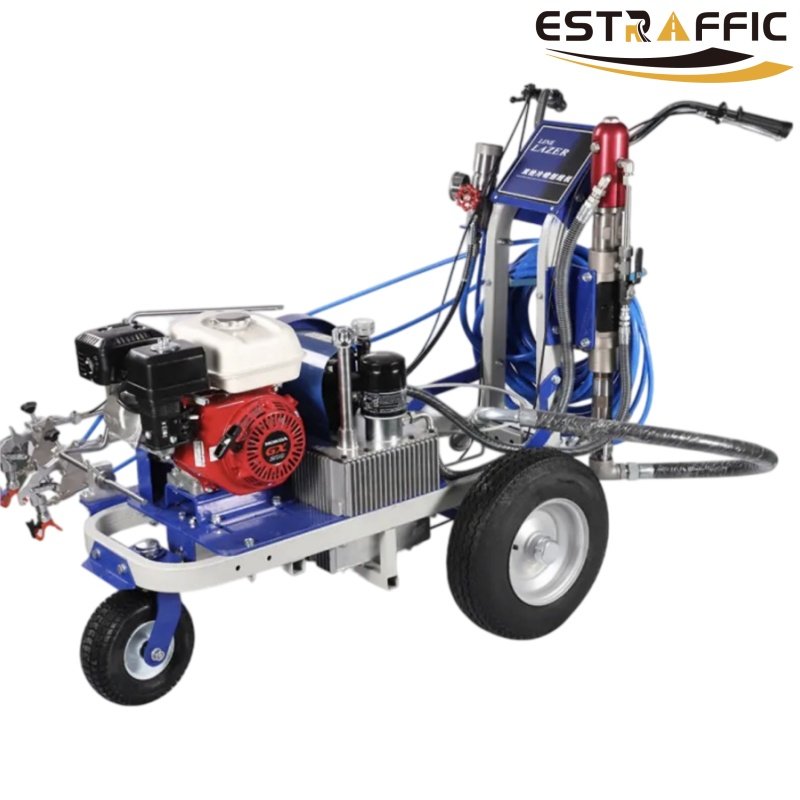

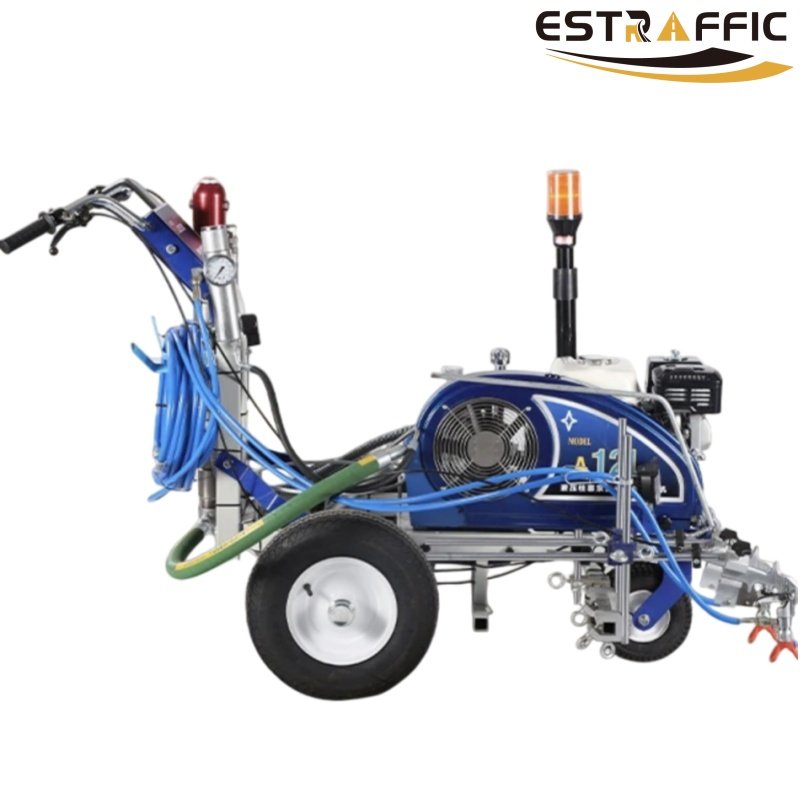

Product Display

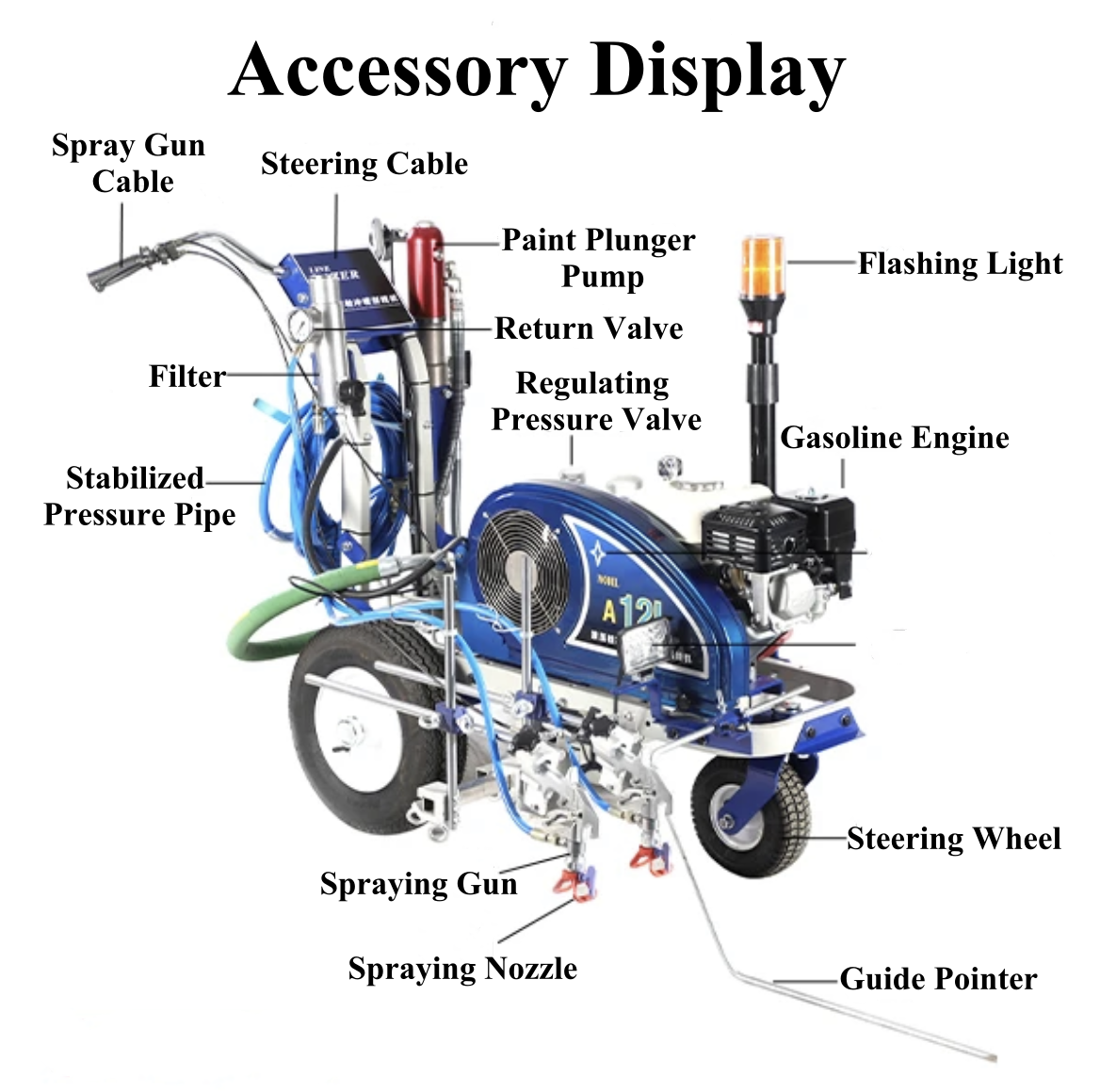

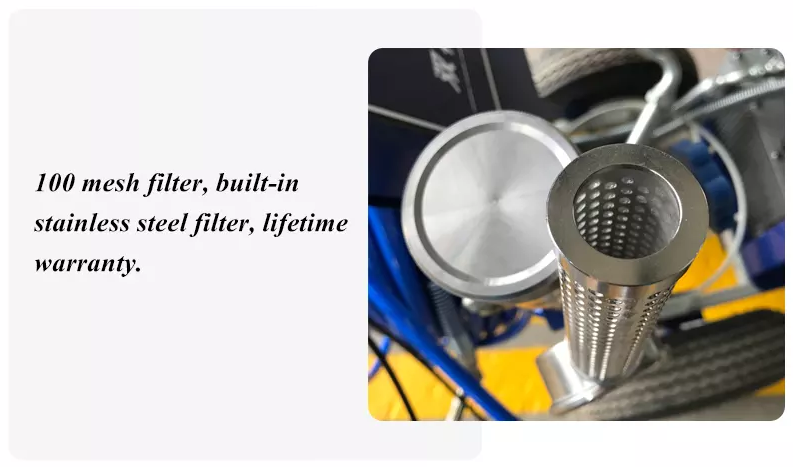

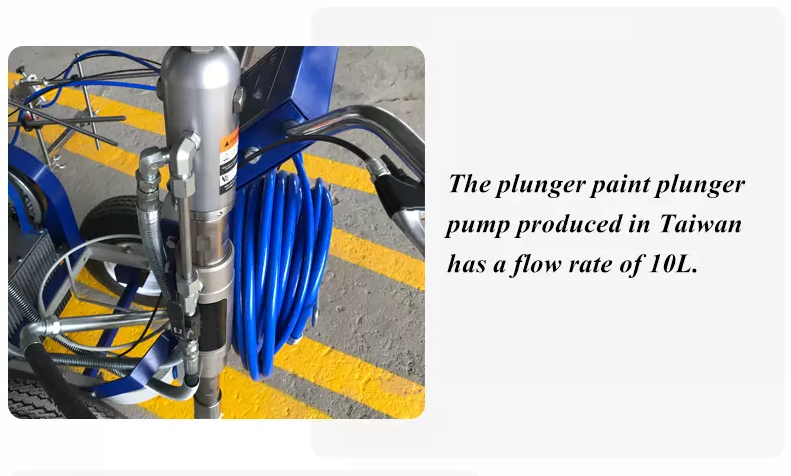

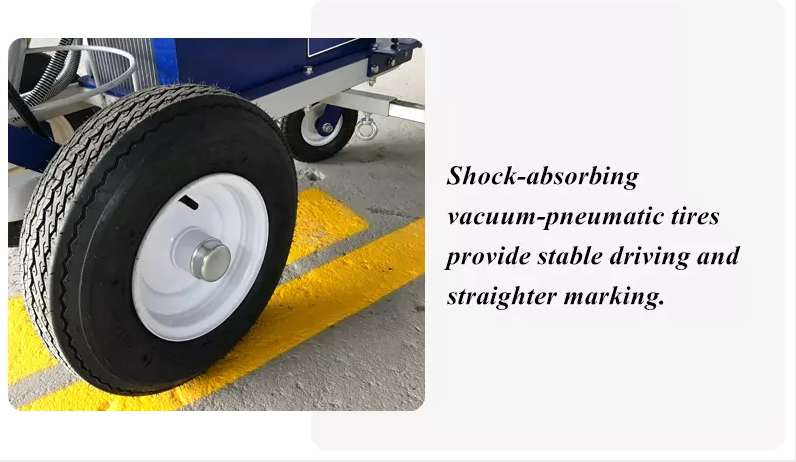

Main Parts
